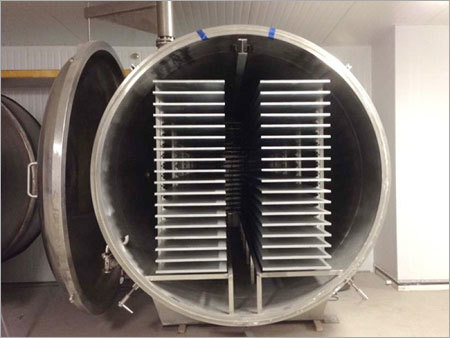

100kg Batch Freeze Dryer
Product Details:
100kg Batch Freeze Dryer Price And Quantity
- 350000.00 INR/Set
- 1 Set
100kg Batch Freeze Dryer Trade Information
- 10 Set Per Month
- 1 Week
Product Description
Holding a highly reputed and trusted market standing, we are engaged in manufacturing and supplying 100kg Batch Freeze Dryer. In this dryer, vacuum freeze-drying technology is applied to process food material to make freeze dried food. We manufacture this dryer with the help of our diligent workforce using best quality materials. In a sealed vacuum surrounding, by heating the complete frozen material, the moisture in the frozen material will be evaporated to a continuous frozen vapor condenser. 100kg Batch Freeze Dryer is ideal for using in food and pharmaceutical industry.
Features:
- Noise free operation
- Longer working life
- High working efficiency
100kg Batch Freeze Dryer
Technical parameters of freeze dryer :
| Model | EBT-100 |
| Type | Conductive, all in one |
| Ice Capacity (kg) | 100kg in a 24hr period (vapor condenser capacity) |
| Vapor Condenser Temperature (℃) | -45℃ (option: -60℃) |
| Usable Shelf Area (m2) | 10.12 m2 |
| Number of Shelves | 11+1, the top plate provides radiant heat only |
| Shelf Dimension (mm) | 1150*800mm (thickness: 15mm) SUS304 |
| Shelf Spacing (mm) | 40-80mm |
| Shelf Temperature (℃) | -25℃ to 70℃ (option: -45℃ to 70℃) |
| Shelf Cooling Rate (+40℃ to –25℃) | ≤ 60 minutes |
| Shelf Heating Rate (℃/min) (approx.) | 1℃/min, By electricity |
| Heating/cooling medium | Silicone oil |
| Heating/cooling exchange | By plate type of heat exchanger |
| Number of Product Trays | 22 pieces |
| Tray Dimension (mm) | 570*795mm (height: 25mm) SUS304 |
| Ultimate vacuum level (Pa) | 5 Pa |
| Chamber vacuum rate (atm to 100 Pa) | ≤ 15 minutes |
| Refrigeration | Standard Xueying/Xuemei, Brand option: Bitzer. |
| Refrigerant | R404A/R507 |
| Cooling way | By water cooling or air cooling as option |
| Cooling water flow rate | 10-15t/hr,<28℃ |
| Vacuum system | Standard Yoivac, Option: Ulvac/Leybold/Edwards |
| Energy consumption (24hr) | 3.43kWh/kg by water cooling |
| Power requirement | 17.85kw, 110-240V single, 240-480V, 3P, 50/60Hz |
| Defrost way | By water or 60°C hot water |
| Control system | PLC with HMI |
| Installation area (m2) | 35 m2 |
| Chamber – over all dimension | 3000*1500*2000mm (L*W*H), SUS304 |
| Weight (kg) | 4000kg |
