Research Freeze Dryer

350000.00 INR/Set

Get a Price/Quote

Product Details:

Material Stainless Steel
Style Single-Temperature
Refrigerant 0.12 m2
Temperature -50 deg C, -80 deg C Celsius (oC)
Voltage 220V 50HZ /110V 60Hz Volt (v)
Capacity 10 Kg/hr
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Research Freeze Dryer Price And Quantity

Minimum Order Quantity 1 Set
Price 350000.00 INR/Set

Research Freeze Dryer Product Specifications

Material Stainless Steel
Capacity 10 Kg/hr
Refrigerant 0.12 m2
Voltage 220V 50HZ /110V 60Hz Volt (v)
Temperature -50 deg C, -80 deg C Celsius (oC)
Style Single-Temperature

Research Freeze Dryer Trade Information

Supply Ability 10 Set Per Month
Delivery Time 1 Week

Product Description

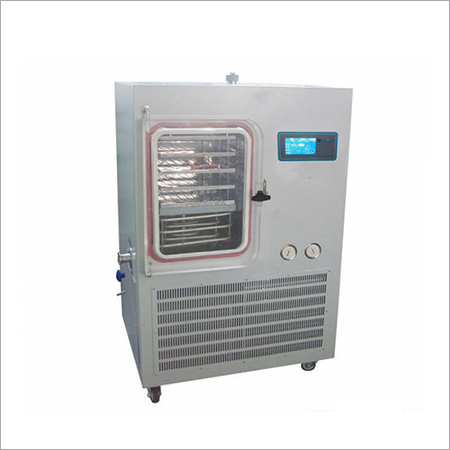

Research Freeze Dryer is specifically designed to be used for fulfilling the lyophilization needs of laboratories. It can attain temperature of as low as -80 degrees Celsius according to the model. This dryer can capture up to 3 kilograms of water per 24 hours at a constant rate. It has a microprocessor-based control system which ensures user-friendly operation. Research Freeze Dryer offered by us has strong powder-coated structure with four sample plates that are placed on top of each other. It is provided with LCD touch control panel and is known to have CFC-free refrigeration. This freeze dryer is available at highly competitive rates in different models as demanded by our trusted customers.

Product details

No load temperature	-50 deg C, -80 deg C
No load freeze area	0.12 m2
Plate load materials	1.2 L
Ability to capture water	3 kgs/24h
Vacuum	10 Pa
Voltage	220V 50HZ /110V 60Hz

Main Technical Parameters:

Dimension:610ially designed stainless steel sample holder, adjustable sample tray spacing, number of layers set free; drying plate diameter 200mm, a total of four; material can be placed approximately 1000ml (material thickness 10mm). x 395 x 370+420(drum) mm
Material Tray Specifications:dia200mm four-layered
Consuming wattage:1000VA
Voltage:220V 50HZ /110V 60Hz

Microprocessor controls.

3 Liters in 24hours ice capacity.
Internal condenser coil-304 or 316 stainless steel.
-50C or -80C condenser lowest temperature.
304 or 316 stainless construction.
CFC-free refrigeration.(optional for customer's request refrigeration:R507,R410A, etc.)
Heating element to defrost available for optional.
Transparent Acrylic Drum drying chamber for user to observe the drying process.
7â€œ LCD touch control, LCD display
parameters include vacuum,
condenser temperature, run time, ambient temperature.
For water based samples, the -50C condenser is the perfect choice with effective cost.
For samples containing solvents or with low eutectic points, the -80 C condenser provides maximum performance.
